Flanges

Home / Flanges



Our range of Industrial flanges are ideal for application in diverse industry for high pressure and temperature applications. These flanges are designed with precision for easy installation


Slip On flanges



Specification :

Size: 1/2″ (15 NB) to 48″ (1200NB)

Standards: ANSI B16.5, ANSI B16.47 Series A & B, MSS SP44, ASA, API-605, AWWA, Custom Drawings

Pressure Ratings: Class 150, PN16

Carbon Steel Slip-on Flanges: ASTM A105/A105N, A350 LF1, LF2 CL1/CL2, LF3 CL1/CL2, A694 F42, F46, F48, F50, F52, F56, F60, F65, F70, A516.60, 65, 70 (Spectacle Blind Flange, Spacer Ring/Spade Flange), Steel RST37.2, C22.8

Stainless Steel Slip-on Flanges: ASTM A182 F202, F304/304L/304H, F316/316L, F316H, F316TI, F310, F321, F904L

Alloy Steel Slip-on Flanges: ASTM A182 F1, F5, F9, F11, F22, F91

Special Alloy Slip-on Flanges: Duplex, Super Duplex, Nickel Alloys

Flange Face Type: Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ)

Coating/Surface Treatment: Anti-rust Paint, Oil Black Paint, Yellow Transparent, Zinc Plated, Cold and Hot Dip Galvanized

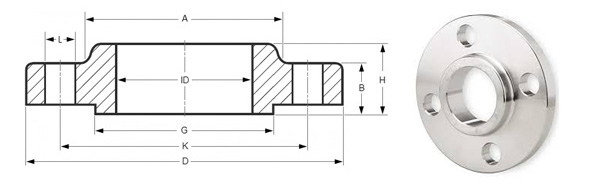

Specification/ Dimension of Slip On flanges :

150 Lbs
Drilling
Nominal Bore Dia.(D) Thick.(E) Dia.(F) Dia.(B) Dia.(A) Height1(H) Nbr Holes Dia.(C)
1/2″ 90 9.6 35.05 30 22.2 14 4 15.87 60.3
3/4″ 100 11.2 42.93 38 27.7 14 4 15.87 69.9
1″ 110 12.7 50.80 49 34.5 16 4 15.87 79.4
1 1/4″ 115 14.3 63.50 59 43.2 19 4 15.87 88.9
1 1/2″ 125 15.9 73.15 65 49.5 21 4 15.87 98.4
2″ 150 17.5 91.95 78 61.9 24 4 19.05 120.7
2 1/2″ 180 20.7 104.65 90 74.6 27 4 19.05 139.7
3″ 190 22.3 127.00 108 90.7 29 4 19.05 152.4
3 1/2″ 215 22.3 139.70 122 103.4 30 8 19.05 177.8
4″ 230 22.3 157.22 135 116.1 32 8 19.05 190.5
5″ 255 22.3 185.67 164 143.8 35 8 22.22 215.9
6″ 280 23.9 215.90 192 170.7 38 8 22.22 241.3
8″ 345 27.0 269.75 246 221.5 43 8 22.22 298.5
10″ 405 28.6 323.85 305 276.2 48 12 25.40 362.0
12″ 485 30.2 381.00 365 327.0 54 12 25.40 431.8
14″ 535 33.4 412.75 400 359.2 56 12 28.57 476.3
16″ 595 35.0 469.90 457 410.5 62 16 28.57 539.8
18″ 635 38.1 533.40 505 461.8 67 16 31.75 577.9
20″ 700 41.3 584.20 559 513.1 71 20 31.75 635.0
24″ 815 46.1 692.15 663 616.0 81 20 34.92 74
1,6mm raised face not included in the E & H dimensions

Welded Neck Flanges



Specification :

Size: 1/2″ (15 NB) to 48″ (1200NB)

Standards: ANSI B16.5, ANSI B16.47 Series A & B, MSS SP44, ASA, API-605, AWWA, Custom Drawings

Pressure Ratings: Class 150, PN16

Carbon Steel Weld Neck Flanges: ASTM A105/A105N, A350 LF1, LF2 CL1/CL2, LF3 CL1/CL2, A694 F42, F46, F48, F50, F52, F56, F60, F65, F70, A516.60, 65, 70 (Spectacle Blind Flange, Spacer Ring/Spade Flange), Steel RST37.2, C22.8

Stainless Steel Weld Neck Flanges: ASTM A182 F202, F304/304L/304H, F316/316L, F316H, F316TI, F310, F321, F904L

Alloy Steel Weld Neck Flanges: ASTM A182 F1, F5, F9, F11, F22, F91

Special Alloy Weld Neck Flanges: Duplex, Super Duplex, Nickel Alloys

Flange Face Type: Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ)

Coating/Surface Treatment: Anti-rust Paint, Oil Black Paint, Yellow Transparent, Zinc Plated, Cold and Hot Dip Galvanized

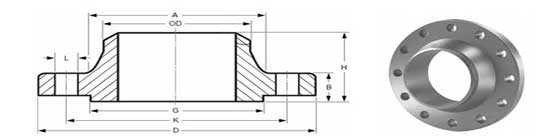

Specification/ Dimension of Welded Neck Flange :

ANSI, ASME, ASA, B16.5 150lb/sq.in. WELDING NECK FLANGE RF
ø D b g m a J* h k Holes l Kg.
1/2" 88,9 11,1 34,9 30,2 21,3 15,7 47,6 60,3 4 15,9 0,500
3/4" 98,4 12,7 42,9 38,1 26,7 20,8 52,4 69,8 4 15,9 0,700
1" 107,9 14,3 50,8 49,2 33,5 26,7 55,6 79,4 4 15,9 1,100
1 1/4" 117,5 15,9 63,5 58,8 42,2 35,1 57,1 88,9 4 15,9 1,500
1 1/2" 127,0 17,5 73,0 65,1 48,3 40,9 61,9 98,4 4 15,9 1,800
2" 152,4 19,0 92,1 77,8 60,3 52,6 63,5 120,6 4 19,0 2,700
2 1/2" 177,8 22,2 104,8 90,5 73,1 62,7 69,8 139,7 4 19,0 4,400
3" 190,5 23,8 127,0 107,9 88,9 78,0 69,8 152,4 4 19,0 5,200
3 1/2" 215,9 23,8 139,7 122,2 101,6 90,2 71,4 177,8 8 19,0 6,400
4" 228,6 23,8 157,2 134,9 114,3 102,4 76,2 190,5 8 19,0 7,500
5" 254,0 23,8 185,7 163,5 141,2 128,3 88,9 215,9 8 22,2 9,200
6" 279,4 25,4 215,9 192,1 168,4 154,2 88,9 241,3 8 22,2 11,000
8" 342,9 28,6 269,9 246,1 219,1 202,7 101,6 298,4 8 22,2 18,300
10" 406,4 30,2 323,8 304,8 273,0 254,5 101,6 361,9 12 25,4 25,000
12" 482,6 31,7 381,0 365,1 323,8 304,8 114,3 431,8 12 25,4 39,000
14" 533,4 34,9 412,7 400,0 355,6 336,5 127,0 476,2 12 28,6 51,000
16" 596,9 36,5 469,9 457,2 406,4 387,3 127,0 539,7 16 28,6 60,000
18" 635,0 39,7 533,4 504,8 457,2 438,1 139,7 577,8 16 31,7 71,000
20" 698,5 42,9 584,2 558,8 508,0 488,9 144,5 635,0 20 31,7 88,000
22" 749,3 46,0 641,2 609,6 558,8 539,7 149,2 692,1 20 34,9 102,000
24" 812,8 47,6 692,1 663,6 609,6 590,5 152,4 749,3 20 34,9 119,000
* The data "J" corresponds to the STD schedule

Blind Flanges



Specification :

Size: 1/2″ (15 NB) to 48″ (1200NB)

Standards: ANSI B16.5, ANSI B16.47 Series A & B, MSS SP44, ASA, API-605, AWWA, Custom Drawings

Pressure Ratings: Class 150, PN16

Carbon Steel Blind Flanges: ASTM A105/A105N, A350 LF1, LF2 CL1/CL2, LF3 CL1/CL2, A694 F42, F46, F48, F50, F52, F56, F60, F65, F70, A516.60, 65, 70 (Spectacle Blind Flange, Spacer Ring/Spade Flange), Steel RST37.2, C22.8

Stainless Steel Blind Flanges: ASTM A182 F202, F304/304L/304H, F316/316L, F316H, F316TI, F310, F321, F904L

Alloy Steel Blind Flanges: ASTM A182 F1, F5, F9, F11, F22, F91

Special Alloy Blind Flanges: Duplex, Super Duplex, Nickel Alloys

Flange Face Type: Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ)

Coating/Surface Treatment: Anti-rust Paint, Oil Black Paint, Yellow Transparent, Zinc Plated, Cold and Hot Dip Galvanized

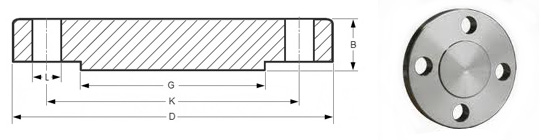

Blind Flange Dimensions :

150 Lbs
Drilling
Nominal Bore Dia.(D) Thick.(E) Dia.(F) Nbr Holes Dia.(C)
1/2″ 90 9.6 35.05 4 15.87 60.3
3/4″ 100 11.2 42.93 4 15.87 69.9
1″ 110 12.7 50.80 4 15.87 79.4
1 1/4″ 115 14.3 63.50 4 15.87 88.9
1 1/2″ 125 15.9 73.15 4 15.87 98.4
2″ 150 17.5 91.94 4 19.50 120.7
2 1/2″ 180 20.7 104.63 4 19.50 139.7
3″ 190 22.3 127.00 4 19.50 152.4
3 1/2″ 215 22.3 139.70 8 19.50 177.8
4″ 230 22.3 157.23 8 19.50 190.5
5″ 255 22.3 185.67 8 22.22 215.9
6″ 280 23.9 215.90 8 22.22 241.3
8″ 345 27.0 269.75 8 22.22 298.5
10″ 405 28.6 325.85 12 25.4 362.0
12″ 485 30.2 381.00 12 25.4 431.8
14″ 535 33.4 412.75 12 28.57 476.3
16″ 595 35.0 469.90 16 28.57 539.8
18″ 635 38.1 533.40 16 31.75 577.9
20″ 700 41.3 584.20 20 31.75 635.0
24″ 815 46.1 692.15 20 34.92 749.3
